Fluid flow design and analysis

Manulogix provides the following fluid flow analysis and design services:
  • Determination of fluid flow behaviour through complex systems.
  • Determination of fluid velocities and pressure drops.
  • Capacity of fans, compressors and pumps through pipe systems.
  • Heating and cooling analyses of fluids and gases.
  • Conduction, convection and radiation heat transfer from solids.
  • Particle flow in gas streams.
  • Flow distribution analysis and equalisation.
  • Injection and diffusion studies.
  • Combustion analysis.
  • Ventilation, gas extraction and air conditioning studies in enclosures.

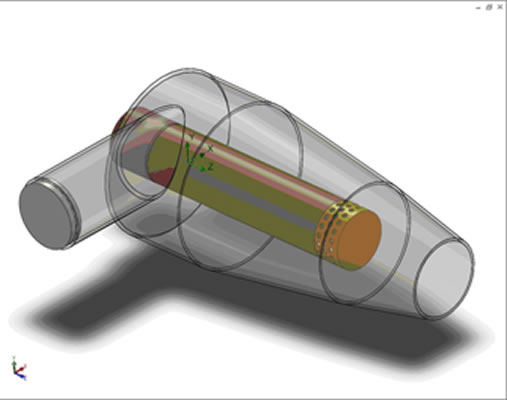

Gas flow through combustion chamber and outlet manifold1 2 3 4 5 6 7 8
